User Guide

Hardware

If you have not done so already, set up your radar and capture card according to the hardware setup guide. Also, ensure that:

  • The micro-USB port on the radar is connected to the capture computer
  • The ethernet port on the capture card is connected to the capture computer
  • Both the radar and capture card are powered on (lights on both boards should be illuminated)

Operating System

A few configuration options requiring elevated privileges must be set at the operating system level; since xwr operates only in user-space, the caller is responsible for making sure these are correctly configured.

Network Interface

The network interface connected to the DCA1000EVM should be configured with a static IP address matching the provided sys_ip, e.g., 192.168.33.30 with a subnet mask of 255.255.255.0 (unless this IP has been changed; see configure_eeprom).

RADAR_IF=eth0  # your radar interface name, e.g., eth0, enp0s25, etc.
RADAR_SYS_IP=192.168.33.30
sudo ifconfig $RADAR_IF $RADAR_SYS_IP netmask 255.255.255.0

Warning

In ubuntu desktop systems with a GUI installed, the GUI settings can override command line options. If this happens, it may be easier to set the IP and netmask using the settings app instead.

Receive Socket Buffer

To reduce dropped packets, the receive socket buffer size should also be increased to at least 2 frames of data:

RECV_BUF_SIZE=6291456  # 6.3 MiB = 8 frames @ 786k each.
echo $RECV_BUF_SIZE | sudo tee /proc/sys/net/core/rmem_max
# or
sudo sysctl -w net.core.rmem_max=$RECV_BUF_SIZE

Note

There is no problem with making this value arbitrarily large; if the receive buffer size is set to a value which exceeds the system limits (cat /proc/sys/net/ipv4/tcp_rmem), the actual value will be capped to the maximum allowed. This is usually more than enough (6291456 ~ 6MiB in our test system).

Tip

You can also set net.core.rmem_max=6291456 in /etc/sysctl.conf (then reload to apply settings with sudo sysctl -p) to make this change persistent across reboots.

Serial Port Permissions

Provide read/write permissions for the serial ports:

sudo chmod 777 /dev/ttyACM0  # or whatever port the radar is on.

Warning

This step may need to be repeated each time the radar is reconnected or rebooted.

Radar Configuration

The high level interface for xwr includes a capture card configuration (DCAConfig) and a radar configuration (XWRConfig).

While the capture card configuration can be left as default, the radar requires a valid modulation to be configured; see XWRConfig for details.

Tip

The TI mmWave sensing estimator may be helpful for creating a configuration.

As a general guideline:

  1. Select a range/doppler resolution in bins; there appears to be an effective limitation on the total range-Doppler frame size of 2^14 (i.e., 128x128, 64x256, etc is the maximum size).

    • The number of range bins is the adc_samples.
    • The number of doppler bins is the frame_length.

  2. Select a target doppler resolution/maximum doppler.

    • This informs the per-antenna chirp rate and frame_period.

  3. Select a target range resolution/maximum range, keeping in mind the theoretical range resolution limit of C / 2B (the bandwidth B is 4GHz for a 77-81 GHz mmWave radar).

    • Based on the maximum chirp time, you will need to select a freq_slope, sample_rate, adc_start_time, tx_start_time, and ramp_end_time which keeps the total chirp time under the chirp period.
    • Set the idle_time to meet the target per-chirp time.

Example Configurations

Note that these configurations can be passed to XWRSystem by simply unpacking them as arguments (system = XWRSystem(**config)).

radar:
    device: AWR1843
    port: null
    frequency: 77.0
    idle_time: 6.0
    adc_start_time: 5.7
    ramp_end_time: 34.00
    tx_start_time: 1.0
    freq_slope: 67.012
    adc_samples: 256
    sample_rate: 10000
    frame_length: 64
    frame_period: 50.0
capture:
    sys_ip: 192.168.33.30
    fpga_ip: 192.168.33.180
    socket_buffer: 6291456

radar:
    device: AWR1843
    port: null
    frequency: 77.0
    idle_time: 331.0
    adc_start_time: 5.7
    ramp_end_time: 59.00
    tx_start_time: 1.0
    freq_slope: 67.012
    adc_samples: 128
    sample_rate: 2500
    frame_length: 128
    frame_period: 100.0
capture:
    sys_ip: 192.168.33.30
    fpga_ip: 192.168.33.180
    socket_buffer: 6291456

Capture Data

Run the Demo

With uv installed and the XWR repository cloned:

uv run demo/demo.py --extra demo --device AWR1843 --rsp AWR1843

Info

Replace the --device and --rsp with specifications according to your radar development board:

Radar --device --rsp
AWR1843Boost AWR1843 AWR1843Boost
AWR1843Boost, 1642 Mode AWR1843L AWR1642Boost
AWR1843AOPEVM AWR1843 AWR1843AOP
AWR1642Boost AWR1642 AWR1642Boost

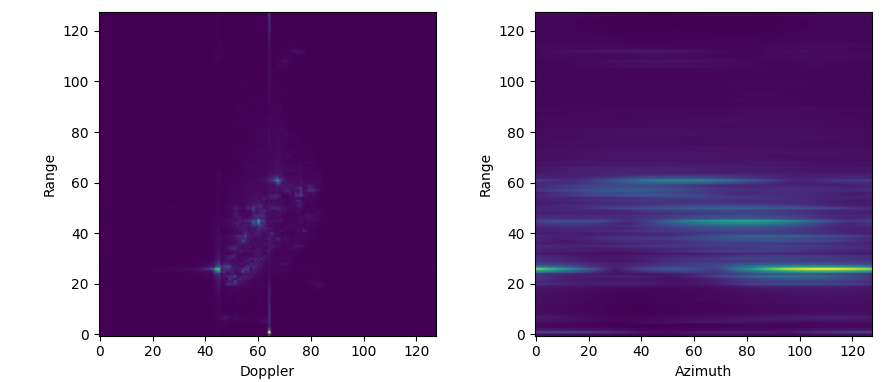

Spectrum Demo

Use the High Level API

Pass the configuration to xwr.XWRSystem:

import logging
import yaml
import xwr

logging.basicConfig(level=logging.DEBUG)

with open("config.yaml") as f:
    cfg = yaml.safe_load(f)

awr = xwr.XWRSystem(**cfg)
for frame in awr.stream():
    break

awr.stop()

See the high level API documentation for additional details.

Warning

Since data capture is performance sensitive, we provide three different ways to stream data:

  • XWRSystem.stream: stream data directly as an iterator in the main thread. Note that a high worst case execution time (e.g., due to file system writes) may lead to packet drops!
  • XWRSystem.qstream: read data into a (q)ueue using a separate thread. This is much less performance sensitive, though the reader must still keep up with the radar's data rate.
  • XWRSystem.dstream: also read data using a separate thread, but (d)rop older frames if they are not consumed fast enough to ensure that the reader always gets the latest frame.

Troubleshooting

Initialization Delay

While the radar is booting, you will not be able to open the serial port.

[Errno 16] Device or resource busy: '/dev/ttyACM0'
This is normal, and should go away after ~10-30 seconds.

Radar start times out: If the radar does not respond after issuing Send: sensorStart, this usually indicates an invalid radar configuration; the TI firmware does not provide any error messages or indications.

Dead FPGA: When powered on, the capture card error lights should all come on for ~1sec, then turn off again. If this does not occur, the FPGA may be dead.

Device Times Out: This can also be caused by a loose LVDS cable (the blue ribbon cable between the radar and capture card), if the pins corresponding to commands are loose.

Frequent Dropped Packets: If you receive dropped packet warnings (Dropped packets: X bytes); check to make sure that rmem_max was set correctly. In particular, look for another warning:

Receive buffer size X is smaller than 2 frames (Y); is net.core.rmem_max set?

Other Hardware Faults: The TI mmWave Demo Visualizer is a good way to validate radar hardware functionality, and uses the same demo firmware.

Note

If an error is returned on the console in the Demo Visualizer: there may be a hardware fault. It should be raised with a line number in mss_main.c; the error case (e.g. RL_RF_AE_CPUFAULT_SB) should reveal what general type of fault it is.
